CW Brass Cable Glands are used with Plastic and Rubber (Elastomer) sheathed cable. Indoor & Outdoor whenever it is required to provide sealing on cable outer sheath.
CW glands are weatherproof gland and can be used in corrosive conditions when protected with shroud. Positive armour locking, effective earth continuity, increased mechanical strength.

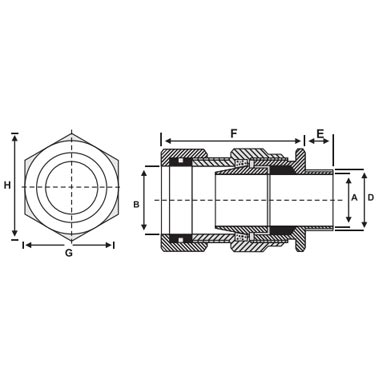

| GLAND SIZE | THREAD SIZE | THREAD LENGTH | CABLE RANGE | PART NUMBER | ||
| METRIC | NPT | MIN | MAX | |||
| CW 20S | M20 | 1/2” | 10 | 11,50 | 15,50 | GLCW 20S |
| CW 20 | M20 | 1/2” | 10 | 14,00 | 20,50 | GLCW 20L |
| CW 25S | M25 | 3/4” | 10 | 18,00 | 24,00 | GLCW 25S |
| CW 25 | M25 | 3/4” | 10 | 20,00 | 27,20 | GLCW 25L |
| CW 32S | M32 | 1” | 10 | 26,30 | 33,50 | GLCW 32S |
| CW 32 | M32 | 1” | 10 | 26,30 | 33,50 | GLCW 32L |
| CW 40S | M40 | 1 1/4” | 13 | 31,50 | 39,50 | GLCW 40S |
| CW 40 | M40 | 1 1/4” | 13 | 32,00 | 40,00 | GLCW 40L |
| CW 50S | M50 | 1 1/2” | 13 | 38,20 | 46,30 | GLCW 50S |
| CW 50 | M50 | 2” | 13 | 44,00 | 52,60 | GLCW 50L |
| CW 63S | M63 | 2” | 14 | 50,10 | 59,00 | GLCW 63S |
| CW 63 | M63 | 2 1/2” | 14 | 56,00 | 65,30 | GLCW 63L |
| CW 75S | M75 | 2 1/2” | 15 | 62,00 | 71,60 | GLCW 75S |
| CW 75 | M75 | 3” | 15 | 68,00 | 78,00 | GLCW 75L |
| CW 90S | M90 | 3” | 18 | 80,50 | 91,00 | GLCW 90S |
| CW 90 | M90 | 3” | 18 | 80,50 | 91,00 | GLCW 90L |
Material:- Brass
