Brizall’s Copper Bonded Threaded earth rods have a low carbon steel core ideal for deep driving and a molecularly bonded copper covering of 99.9% pure copper to give lasting resistance to corrosion.

Standard copper coating thickness is 254 microns or (10 mil) or (0.25 mm). we follows as per UL and IEC 62156 standard.

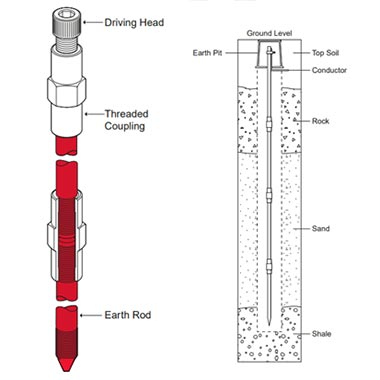

The threads are formed by a roll threading to ensure strength and maintain the molecular bonded copper along the full length of the threads.

Customized copper coating thickness & rod diameter are also available.

SHANK DIA IN MM	THREAD SIZE	LENGTH IN MM	PART NUMBER
12.7	1/2"	1200	CBERT-124
12.7		1500	CBERT-125
12.7		1800	CBERT-126
12.7		2400	CBERT-128
12.7		2440	CBERT-128 *
12.7		3000	CBERT-1210
12.7		3050	CBERT-1210 *
14.2	5/8"	1200	CBERT-144
14.2		1500	CBERT-145
14.2		1800	CBERT-146
14.2		2400	CBERT-148
14.2		2440	CBERT-148 *
14.2		3000	CBERT-1410
14.2		3050	CBERT-1410*
16		1200	CBERT-164
16		1500	CBERT-165
16		1800	CBERT-166
16		2400	CBERT-168
16		3000	CBERT-1610
17.2	3/4"	1200	CBERT-174
17.2		1500	CBERT-175
17.2		1800	CBERT-176
17.2		2400	CBERT-178
17.2		2440	CBERT-178 *
17.2		3000	CBERT-1710
17.2		3050	CBERT-1710 *
25	1"	3000	CBERT-2510

Material:- 99.9% Pure electrolytic copper molecularly bonded on steel core

Note:- * MARKING SIZE IS UL LISTED ROD
