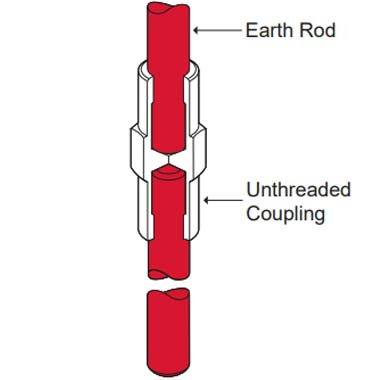

Brizall’s earth rods have a low carbon steel core ideal for deep driving and a molecularly bonded copper covering of 99.9% pure copper to give lasting resistance to corrosion.

Standard copper coating thickness is 254 microns or (10 mil) (0.25 mm). we follows as per UL and IEC 62156 standard.

Customized copper coating thickness & rod diameter are also available.

SHANK DIA IN MM	LENGTH IN MM	PART NUMBER
12.7	1200	CBER-124
12.7	1500	CBER-125
12.7	1800	CBER-126
12.7	2400	CBER-128
12.7	2440	CBER-128 *
12.7	3000	CBER-1210
12.7	3050	CBER-1210 *
14.2	1200	CBER-144
14.2	1500	CBER-145
14.2	1800	CBER-146
14.2	2400	CBER-148
14.2	2440	CBER-148 *
14.2	3000	CBER-1410
14.2	3050	CBER-1410*
16	1200	CBER-164
16	1500	CBER-165
16	1800	CBER-166
16	2400	CBER-168
16	3000	CBER-1610
17.2	1200	CBER-174
17.2	1500	CBER-175
17.2	1800	CBER-176
17.2	2400	CBER-178
17.2	2440	CBER-178 *
17.2	3000	CBER-1710
17.2	3050	CBER-1710 *
25	3000	CBER-2510 *

Material:- 99.9% Pure electrolytic copper molecularly bonded on steel core

Note:- * MARKING SIZE IS UL LISTED
