U Bolt clamps can be used to connect tape and cable to the earth rod or a combination of both.
The clamps have a U bolt connection onto a strong cast body providing a long lasting connection to the earth rod.

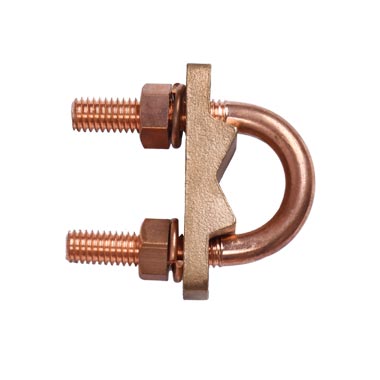

Single Plate Type
For Horizontal Flat Tapes
| MAXIMUM ROD DIA IN MM |
CONDUCTOR SIZE IN SQ MM |
NUT SIZE | PART NUMBER |
| 16 | TAPE OR CABLE |
M8 | SPUC 16 |
| 25 | M8 | SPUC 25 | |
| 31 | M10 | SPUC 31 | |
| 38 | M10 | SPUC38 | |
| 50 | M10 | SPUC50 |
Material:- U bolt - Copper & Clamp Body - Gunmetal

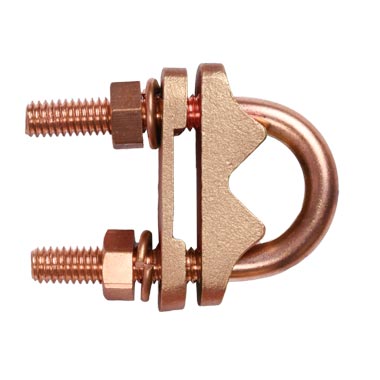

Double Plate Type

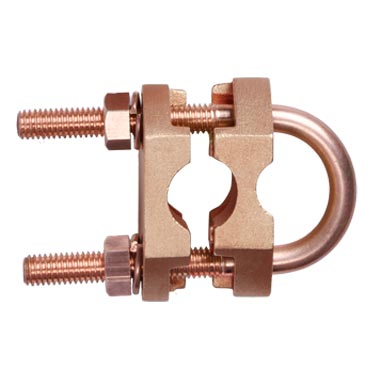

For Vertical Flat Tapes & Rod to Cable Clamp GUV type
| MAXIMUM ROD DIA IN MM |
CONDUCTOR SIZE IN SQ MM |
NUT SIZE | PART NUMBER |
| 16 | 25 x 3 |
M8 | DPUC 16 |
| 25 | M8 | DPUC 25 | |
| 31 | M10 | DPUC 31 | |
| 38 | M10 | DPUC38 | |
| 50 | M10 | DPUC50 | |
| 16 | 16-70 Sq.mm | M8 | DPRC167 |
| 25 | 70-120 Sq.mm | M8 | DPRC 2512 |
| 25 | 150-300 Sq.mm | M8 | DPRC 2530 |
Material:- U bolt - Copper & Clamp Body - Gunmetal
