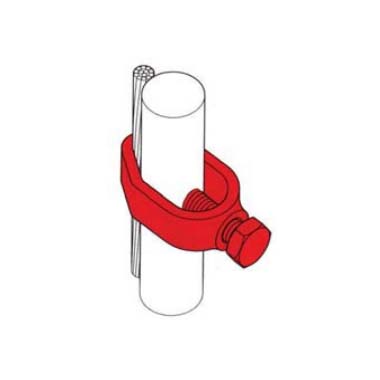

The rod to cable clamp (G type) is used for connection between earth rod and copper conductor.
The clamp has a high strength body with excellent resistance to corrosion.
| ROD DIA IN MM |
CONDUCTOR RANGE IN SQ.MM |
BOLT SIZE | PART NUMBER |
| 12.7 | 16-50 | M8 | CCG12 |
| 14.2/16 | 16-70 | M10 | CCG16 |
| 17.2/20 | 35-95 | M10 | CCG20 |
Material:- Brass & Gunmetal
* Suitable for use with 8 mm diameter solid circular conductors.
