Cable Lugs Manufactured From High copper alloy terminal with offset tongue for joining a wide range of cable to equipment pads or bar
Easy to install with screwdriver or wrench connector is reusable. Plain copper finish.

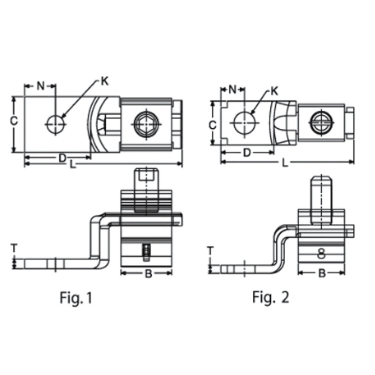

| Conductor Range | Stud Hole | SCREW TYPE | B mm |
C mm |
D mm |
H mm |
K mm |
L mm |
T mm |
PART NUMBER |
| 14 AWG-10 AWG | #8 | SLOT | 0.28 | 0.31 | 0.47 | 0.66 | 0.14 | 1.02 | 0.07 | CSLU-25 |
| 14 AWG-6 AWG | #10 | SLOT | 0.43 | 0.39 | 0.57 | 0.91 | 0.20 | 1.24 | 0.07 | CSLU-35 |
| 8 AWG-2 AWG | 1/4 | SLOT | 0.50 | 0.47 | 0.61 | 1.05 | 0.26 | 1.55 | 0.08 | CSLU-70 |
| 2 AWG-1/0 | 1/4 | SLOT | 0.61 | 0.62 | 0.86 | 1.50 | 0.26 | 1.98 | 0.11 | CSLU-125 |
| 4 AWG-3/0/td> | 3/8 | HEX SOCKET | 0.72 | 0.75 | 1.20 | 1.40 | 0.39 | 2.20 | 0.16 | CSLU-175 |
| 2 AWG-4/0 | 5/16 | HEX SOCKET | 0.94 | 0.99 | 1.24 | 1.64 | 0.34 | 2.55 | 0.12 | CSLU-225 |
| 1/0-350 kcmil | 3/8 | HEX SOCKET | 1.22 | 0.99 | 1.60 | 2.63 | 0.39 | 2.83 | 0.12 | CSLU-300 |
| 1/0-500 kcmil | 3/8 | HEX SOCKET | 1.42 | 1.50 | 2.12 | 2.74 | 0.39 | 4.09 | 0.18 | CSLU-400 |
Material:- Copper
