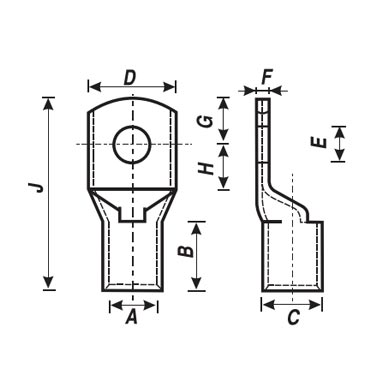

| Cable Sq. mm & Stud Hole | Stud Hole E | A | C | D | F | B | H | G | J | PART NUMBER |
| 1.5 - 4 | 4.2 | 1.8 | 3.7 | 8 | 1 | 5 | 5 | 4 | 16 | CCL – 0154 |
| 1.5 - 5 | 5.2 | 1.8 | 3.7 | 8 | 1 | 5 | 5 | 4 | 16 | CCL – 0155 |
| 1.5 - 6 | 6.5 | 1.8 | 3.7 | 10 | 0.8 | 5 | 6 | 5 | 18 | CCL – 0156 |
| 2.5 - 4 | 4.2 | 2.4 | 4 | 8 | 1 | 7 | 5 | 4 | 18 | CCL – 0254 |
| 2.5 - 5 | 5.2 | 2.4 | 4 | 10 | 0.8 | 7 | 6 | 5 | 20 | CCL – 0255 |
| 2.5 - 6 | 6.5 | 2.4 | 4 | 10 | 0.8 | 7 | 6 | 5 | 20 | CCL – 0256 |
| 4 - 4 | 4.2 | 3.1 | 4.8 | 10 | 1 | 7 | 6 | 5 | 20 | CCL – 0404 |
| 4 - 5 | 5.2 | 3.1 | 4.8 | 10 | 1 | 7 | 6 | 5 | 20 | CCL - 0405 |
| 4 - 6 | 6.5 | 3.1 | 4.8 | 10 | 1 | 7 | 6 | 5 | 20 | CCL - 0406 |
| 6 - 5 | 5.2 | 3.8 | 5.5 | 10 | 1.2 | 9 | 6 | 5 | 23 | CCL – 0605 |
| 6 - 6 | 6.5 | 3.8 | 5.5 | 12 | 1 | 9 | 9 | 6 | 27 | CCL – 0606 |
| 6 - 8 | 8.4 | 3.8 | 5.5 | 12 | 1 | 9 | 9 | 6 | 27 | CCL - 0608 |
| 6 - 10 | 10.5 | 3.8 | 6 | 15 | 1.2 | 9 | 11 | 9 | 32 | CCL - 0610 |
| 10 - 6 | 6.5 | 4.5 | 6.2 | 12 | 1.2 | 9 | 7 | 6 | 25 | CCL - 1006 |
| 10 - 8 | 8.4 | 4.5 | 6.2 | 12 | 1.2 | 9 | 9 | 6 | 27 | CCL - 1008 |
| 10 - 10 | 10.5 | 4.5 | 6.8 | 15 | 1.3 | 10 | 11 | 9 | 32 | CCL - 1010 |
| 16 - 6 | 6.5 | 5.4 | 7.1 | 12 | 1.4 | 12 | 7 | 7 | 30 | CCL - 1606 |
| 16 - 8 | 8.4 | 5.4 | 7.1 | 12 | 1.4 | 12 | 9 | 7 | 32 | CCL - 1608 |
| 16 - 10 | 10.5 | 5.4 | 7.6 | 15 | 1.4 | 12 | 12 | 8 | 36 | CCL - 1610 |
| 25 - 6 | 6.5 | 6.8 | 8.8 | 13 | 2 | 14 | 7 | 7 | 30 | CCL - 2506 |
| 25 - 8 | 8.4 | 6.8 | 8.8 | 16 | 2 | 14 | 11 | 10 | 37 | CCL - 2508 |
| 25 - 10 | 10.5 | 6.8 | 8.8 | 16 | 2 | 14 | 11 | 10 | 37 | CCL - 2510 |
| 25 - 12 | 12.7 | 6.8 | 9.2 | 16 | 2 | 14 | 12 | 10 | 41 | CCL - 2512 |
| 35 - 6 | 6.5 | 8.2 | 10.6 | 15 | 2.4 | 14 | 9 | 9 | 35 | CCL - 3506 |
| 35 - 8 | 8.4 | 8.2 | 10.6 | 15 | 2.4 | 14 | 9 | 9 | 35 | CCL - 3508 |
| 35 - 10 | 10.5 | 8.2 | 10.6 | 18 | 2 | 14 | 10 | 11 | 38 | CCL - 3510 |
| 35 - 12 | 12.7 | 8.2 | 10.6 | 18 | 2 | 15 | 10 | 11 | 38 | CCL - 3512 |
| 50 - 6 | 6.5 | 9.5 | 12.4 | 18 | 2.0 | 19 | 10 | 11 | 43 | CCL - 5006 |
| 50 - 8 | 8.4 | 9.5 | 12.4 | 18 | 2.9 | 19 | 11 | 10 | 43 | CCL - 5008 |
| 50 - 10 | 10.5 | 9.5 | 12.4 | 18 | 2.9 | 19 | 11 | 10 | 43 | CCL - 5010 |
| 50 - 12 | 12.7 | 9.5 | 12.4 | 18 | 2.9 | 19 | 11 | 10 | 43 | CCL - 5012 |
| 70 - 8 | 8.4 | 11.2 | 14.7 | 21 | 3.5 | 21 | 13 | 12 | 50 | CCL - 7008 |
| 70 - 10 | 10.5 | 11.2 | 14.7 | 21 | 3.5 | 21 | 13 | 12 | 50 | CCL - 7010 |
| 70 - 12 | 12.7 | 11.2 | 14.7 | 21 | 3.5 | 21 | 13 | 12 | 50 | CCL - 7012 |
| 95 - 8 | 8.2 | 13.5 | 17.4 | 25 | 3.9 | 23 | 13 | 13 | 55 | CCL - 9508 |
| 95 - 10 | 10.5 | 13.5 | 17.4 | 25 | 3.9 | 23 | 13 | 13 | 55 | CCL - 9510 |
| 95 - 12 | 12.7 | 13.5 | 17.4 | 25 | 3.9 | 23 | 13 | 13 | 55 | CCL - 9512 |
| 95 - 14 | 14.2 | 13.5 | 17.4 | 25 | 3.9 | 23 | 13 | 13 | 55 | CCL - 9514 |
| 120 - 8 | 8.2 | 15.0 | 19.4 | 28 | 4.4 | 25 | 14 | 14 | 60 | CCL - 12008 |
| 120 - 10 | 10.5 | 15 | 19.4 | 28 | 4.4 | 25 | 14 | 14 | 60 | CCL - 12010 |
| 120 - 12 | 12.7 | 15 | 19.4 | 28 | 4.4 | 25 | 14 | 14 | 60 | CCL - 12012 |
| 120 – 14 | 14.2 | 15 | 19.4 | 28 | 4.4 | 25 | 14 | 14 | 60 | CCL - 12014 |
| 120 - 16 | 16.5 | 15 | 19.4 | 28 | 4.4 | 25 | 14 | 14 | 60 | CCL - 12016 |
| 150 - 8 | 8.2 | 16.5 | 21.2 | 30 | 4.7 | 30 | 16 | 16 | 69 | CCL - 15008 |
| 150 - 10 | 10.5 | 16.5 | 21.2 | 30 | 4.7 | 30 | 16 | 16 | 69 | CCL - 15010 |
| 150 - 12 | 12.7 | 16.5 | 21.2 | 30 | 4.7 | 30 | 16 | 16 | 69 | CCL - 15012 |
| 150 - 14 | 14.7 | 16.5 | 21.2 | 30 | 4.7 | 30 | 16 | 16 | 69 | CCL - 15014 |
| 150 - 16 | 16.5 | 16.5 | 21.2 | 30 | 4.7 | 30 | 16 | 16 | 69 | CCL - 15016 |
| 185 - 10 | 10.5 | 18.5 | 23.5 | 34 | 5.0 | 36 | 17 | 17 | 78 | CCL - 18510 |
| 185 - 12 | 12.7 | 18.5 | 23.5 | 34 | 5.0 | 36 | 17 | 17 | 78 | CCL - 18512 |
| 185 - 14 | 14.7 | 18.5 | 23.5 | 34 | 5.0 | 36 | 17 | 17 | 78 | CCL - 18514 |
| 185 - 16 | 16.5 | 18.5 | 23.5 | 34 | 5.0 | 36 | 17 | 17 | 78 | CCL - 18516 |
| 185 - 20 | 20.5 | 18.5 | 23.5 | 34 | 5.0 | 36 | 17 | 17 | 78 | CCL - 18520 |
| 240 - 10 | 10.5 | 18.5 | 26.5 | 38 | 5.5 | 42 | 20 | 20 | 92 | CCL - 24010 |
| 240 - 12 | 12.7 | 21 | 26.5 | 38 | 5.5 | 42 | 20 | 20 | 92 | CCL - 24012 |
| 240 - 14 | 14.7 | 21 | 26.5 | 38 | 5.5 | 42 | 20 | 20 | 92 | CCL - 24014 |
| 240 - 16 | 16.5 | 21 | 26.5 | 38 | 5.5 | 42 | 20 | 20 | 92 | CCL - 24016 |
| 240 - 20 | 20.5 | 21 | 26.5 | 38 | 5.5 | 42 | 20 | 20 | 92 | CCL - 24020 |
| 300 - 12 | 12.7 | 23.5 | 30 | 43 | 6.5 | 46 | 22 | 22 | 101 | CCL - 30012 |
| 300 - 14 | 14.7 | 23.5 | 30 | 43 | 6.5 | 46 | 22 | 22 | 101 | CCL - 30014 |
| 300 - 16 | 16.5 | 23.5 | 30 | 43 | 6.5 | 46 | 22 | 22 | 101 | CCL - 30016 |
| 300 - 20 | 20.5 | 23.5 | 30 | 43 | 6.5 | 46 | 22 | 22 | 101 | CCL - 30020 |
| 400 - 12 | 12.7 | 28.5 | 36.5 | 50 | 8 | 49 | 26 | 26 | 114 | CCL - 40012 |
| 400 - 14 | 14.2 | 28.5 | 36.5 | 50 | 8 | 49 | 26 | 26 | 114 | CCL - 40014 |
| 400 - 16 | 16.5 | 28.5 | 36.5 | 50 | 8 | 49 | 26 | 26 | 114 | CCL - 40016 |
| 400 - 20 | 20.5 | 28.5 | 36.5 | 50 | 8 | 49 | 26 | 26 | 114 | CCL - 40020 |
| 500 - 14 | 14.7 | 30 | 39 | 56 | 9 | 53 | 28 | 28 | 124 | CCL - 50014 |
| 500 - 16 | 16.5 | 30 | 39 | 56 | 9 | 53 | 28 | 28 | 124 | CCL - 50016 |
| 500 - 20 | 20.5 | 30 | 39 | 56 | 9 | 53 | 28 | 28 | 124 | CCL - 50020 |
| 630 - 16 | 16.5 | 35 | 45 | 65 | 10 | 61 | 33 | 33 | 144 | CCL - 63016 |
| 630 - 20 | 20.5 | 35 | 45 | 65 | 10 | 61 | 33 | 33 | 144 | CCL - 63020 |
| 630 BL | - | 35 | 45 | 65 | 10 | 61 | 33 | 33 | 144 | CCL - 630 BL |
| 800 - 16 | 16.5 | 39 | 50.6 | 73 | 11.6 | 78 | 40 | 35 | 170 | CCL - 80016 |
| 800 - 20 | 21.0 | 39 | 50.6 | 73 | 11.6 | 78 | 40 | 35 | 170 | CCL - 80020 |
| 800 BL | 39 | 50.6 | 73 | 11.6 | 78 | 40 | 35 | 170 | CCL - 800 BL | |
| 1000 - 20 | 21.0 | 43 | 56.2 | 81 | 13.2 | 90 | 45 | 45 | 200 | CCL - 100020 |
| 1000 | - | 43 | 50.2 | 81 | 13.2 | 90 | 45 | 45 | 200 | CCL - 1000 BL |
Material:- Pure electrolytic copper tin plated.
